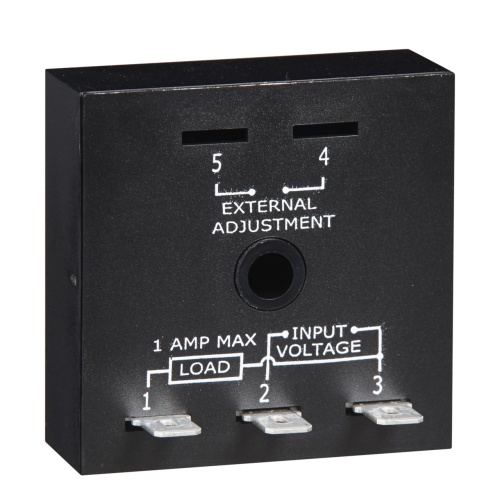

Littelfuse TS2423 is a compact and reliable analog time delay relay. It features a 1 A steady state output load rating and can handle 10 A inrush current at 60°C. With 0.25 in. male quick connect terminals, it offers easy installation. It has a ±15% input tolerance and operates at up to 95% relative humidity. The repeat accuracy is ±2% or 20 ms, whichever is greater. It has excellent insulation resistance of ≥100 and offers a setpoint vs ambient temperature and operating voltage tolerance of ≤±10%. The encapsulated circuitry ensures durability. It has a low power consumption of ≤2 VA and a time delay tolerance of ≤±10%. The reset time is ≤150 ms. It also has a high dielectric breakdown of ≥2000V. With an output voltage drop of ≅2.5 V @ 1 A, it ensures efficient performance.
