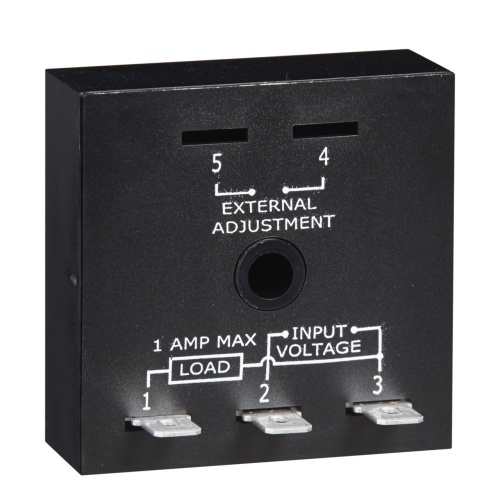

Littelfuse TS2422 is an encapsulated time delay relay with a steady state output load rating of 1 A and an inrush rating of 10 A at 60°C. It features 0.25 in. male quick connect terminals and ±15% input tolerance. With an insulation resistance of ≥100 and a power consumption of ≤2 VA, this device offers a repeat accuracy of ±2% or 20 ms, whichever is greater. It can operate in up to 95% relative humidity without condensation. The reset time is ≤150 ms and the dielectric breakdown is ≥2000V. With a time delay type of analog and a time delay tolerance of ≤±10%, it maintains a setpoint vs ambient temperature and operating voltage variation of ≤±10%. The output voltage drop is approximately 2.5 V at 1 A.
