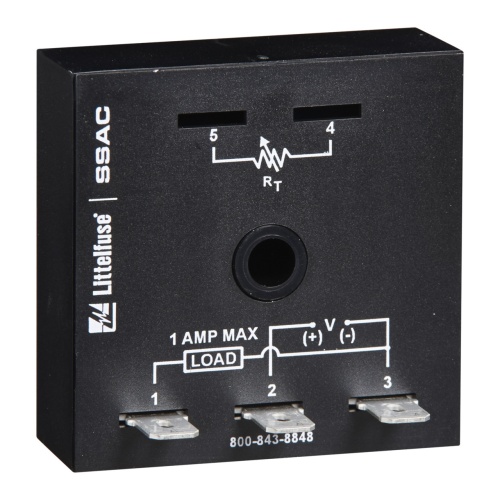

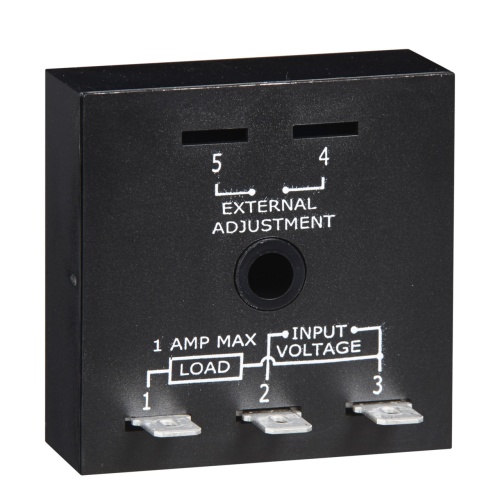

Littelfuse TS2412 is a reliable analog time delay relay with a 1 A steady state output load rating and a 10 A inrush at 60°C. It features 0.25 in. (6.35 mm) male quick connect terminals for easy installation. With a ±15% input tolerance and ±2% or 20 ms repeat accuracy, it ensures precise performance. The encapsulated circuitry offers protection, while the ≤2 VA power consumption promotes energy efficiency. The relay has a ≤±10% setpoint vs ambient temperature and operating voltage, with a reset time of ≤150 ms. It has a dielectric breakdown of ≥2000V between terminals and mounting surface. The output voltage drop is ≅2.5 V at 1 A. The TS2412 is a reliable solution with a compact design suitable for various applications.
