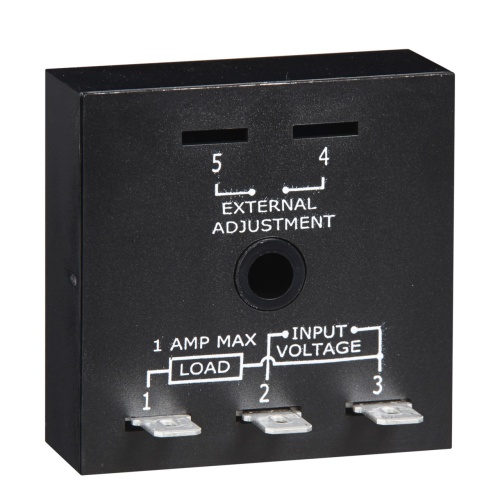

Littelfuse TS2421 offers a steady state output load rating of 1 A, with a 10 A inrush at 60°C. It features 0.25 in. (6.35 mm) male quick connect terminals for easy installation. With a ±15% input tolerance, it operates in humidity up to 95% non-condensing. The device ensures repeat accuracy within ±2% or 20 ms, whichever is greater. The encapsulated circuitry requires a power consumption of ≤2 VA. The time delay tolerance is ≤±10% and the reset time is ≤150 ms. The TS2421 provides excellent insulation resistance with ≥100 of insulation resistance. Setpoint vs ambient temperature and operating voltage are maintained within ≤±10% range. The analog time delay type guarantees optimal performance. Its dielectric breakdown of ≥2000V between terminals and mounting surface ensures safety. It offers an output voltage drop of approximately 2.5V at 1A.
