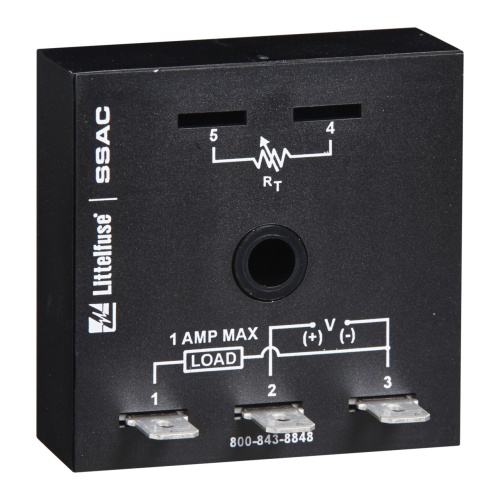

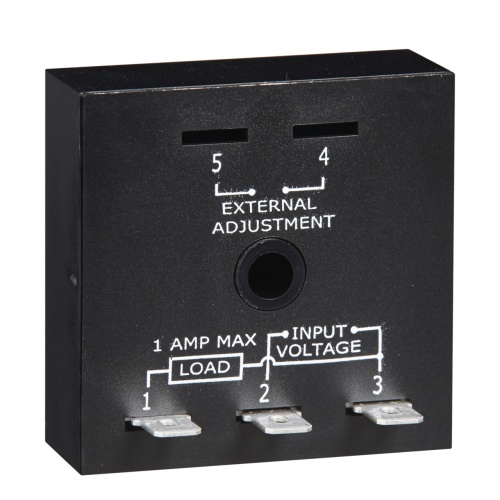

Littelfuse TS24130 is an encapsulated analog time delay relay with a 1A steady state output load rating. It has 0.25 in. male quick connect terminals for easy installation. With a ±15% input tolerance and ±2% or 20ms repeat accuracy, it offers reliable performance. The relay has a power consumption of ≤2 VA and a reset time of ≤150ms. It provides a time delay tolerance of ≤±10% and a dielectric breakdown of ≥2000V. The output voltage drop is approximately 2.5V at 1A.
