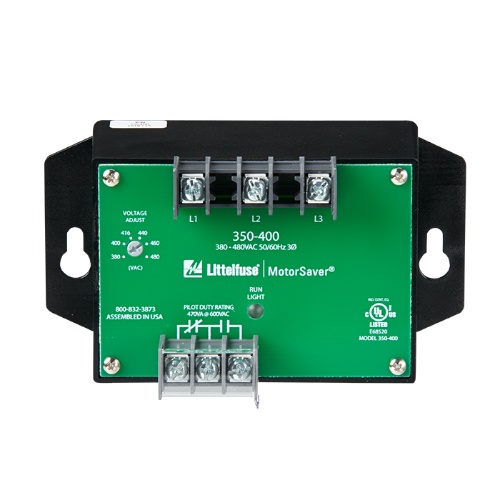

Littelfuse 35040026 is a versatile product with a pilot duty of 480 VA at 240 Volts and a general purpose load rating of 1 - 10 A or 1 hp at 240 Volts. It has a torque termination type with a wire size range of 12 - 18 AWG. It operates at an input AC line frequency of 50 / 60 Hz, with a 20% increase in delay timers at 50 Hz. The undervoltage trip voltage is 90%, with a trip delay range of 4 s for undervoltage and 2 s for unbalance/phase faults. The maximum input power is 5 VA and the restart delay range is adjustable from 2 - 300 s. Undervoltage reset voltage is 93%, voltage unbalance trip point is 6%, and voltage unbalance reset is 4.5%. The trip point accuracy is ±1%.
