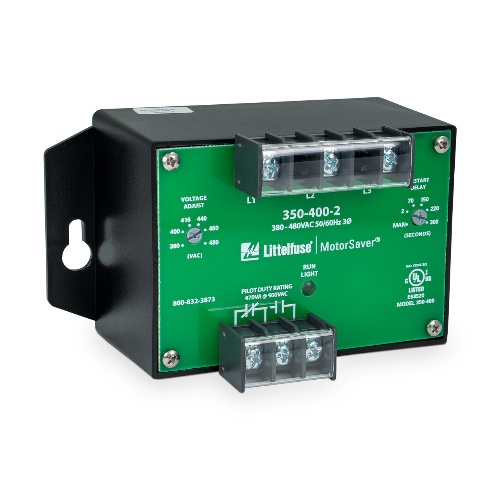

Littelfuse 3504002 is a versatile product with a Pilot Duty output load rating of 470 VA @ 600 Volts or a General Purpose output load rating of 10 A. It has a Torque termination type of 7 in-lbs for wire sizes ranging from 12 to 18 AWG. It operates at an input AC line frequency of 50/60 Hz, offering flexibility. It has a trip delay range of 4s for under voltage faults and 2s for unbalance/phase faults. The maximum input power is 5 Watts. The restart delay range is adjustable from 2 to 300s. It has an undervoltage reset voltage of 93% and a voltage unbalance trip point of 6%. The voltage unbalance reset is at 4.50%. The trip point accuracy is ±1%.
