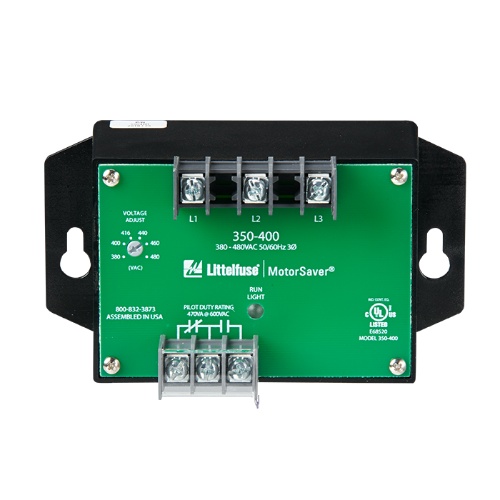

Littelfuse 350400 Voltage Monitoring - 380-480 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565684
Littelfuse 350400 - 350 Series – Three-Phase Voltage Monitor Relay Series - 380-480 Volt - #8 screws - Pilot Duty: 470 VA @ 600 VAC; General Purpose: 10 A
Condition: New
Usually ships Same Day or Next Day$355.84
Sale Price
$296.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse 350400 is a versatile product with a Pilot Duty output load rating of 470 VA @ 600 Volts and a General Purpose rating of 10 A. It has torque termination of 7 in-lbs and works with wire sizes of 12 to 18 AWG. The product operates at 50/60 Hz, with a 20% increase in delay timers at 50 Hz. It has an undervoltage trip voltage of 90% and a trip delay range of 4s for under voltage and 2s for unbalance/phase faults. The maximum input power is 5 VA. Restart delay ranges are 2s after a fault and 2s after complete power loss. The undervoltage reset voltage is 93%, voltage unbalance trip point is 6%, and voltage unbalance reset is 4.50%. The trip point accuracy is ±1%.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Screw
Coil Voltage Rating
380-480 Volt
