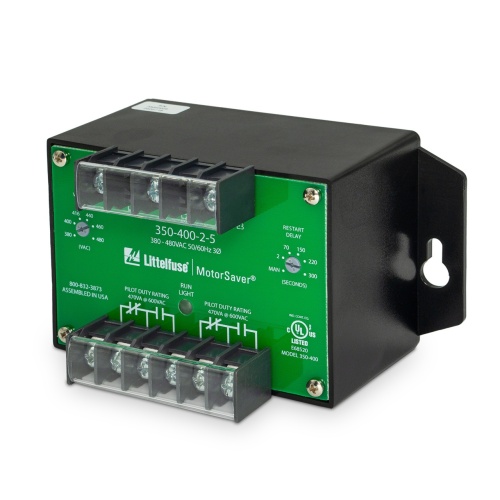

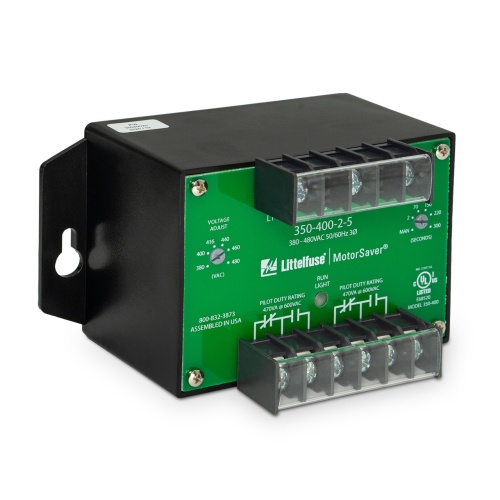

Littelfuse 35040025 Voltage Monitoring - 380-480 Volt, Double Throw, Double Pole
Normally In Stock
Code: 565698
Littelfuse 35040025 - 350 Series – Three-Phase Voltage Monitor Relay Series - 380-480 Volt - #8 screws - Pilot Duty: 480 VA @ 240 VAC; General Purpose: 2 - 10 A
Condition: New
Usually ships Same Day or Next Day$422.44
Sale Price
$352.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse 35040025 is a versatile product with a Pilot Duty load rating of 480 VA at 240 Volts and a General Purpose load rating of 2-10 A. It features a Torque termination type with 7 in-lbs torque and wire size compatibility of 12-18 AWG. The input AC line frequency can be either 50 or 60 Hz, with a 20% increase in delay timers at 50 Hz. It has an undervoltage trip voltage of 90% and trip delay ranges of 4 s for Under Voltage and 2 s for Unbalance/Phase faults. The maximum input power is 5 VA and the restart delay range is 2-300 s, with manual adjustment. Other important specifications include an undervoltage reset voltage of 93%, a voltage unbalance trip point of 6%, voltage unbalance reset of 4.50%, and trip point accuracy of ±1%.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Screw
Coil Voltage Rating
380-480 Volt
