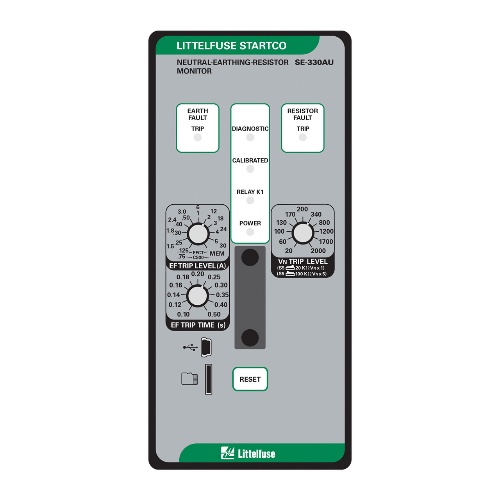

Littelfuse SE-330AU-27-00 NGR Mon Au 48vdc Sc Fbr/Rj45 61850 K4 No
Normally In Stock
Code: 565641
Littelfuse SE-330AU-27-00 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$9261.28
Sale Price
$7717.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-27-00 is a conformally coated relay with 2 Form A and 2 Form C contacts. It operates as fail-safe and offers front-panel switch and remote N.O. contact reset options. It has standard harmonic filtering and supports resistance grounded AC systems. It has a supply voltage range of 28-52VAC and 36-72VDC. Communication options include USB and IEC61850. It provides analog output current of 4-20mA and supports GF trip levels of 0.125-30.0A and RF trip levels of 20-2000V for systems up to 5kV and 100-10000V for systems over 5kV. The GF trip time is 0.1-0.5s and RF trip time is 12s. It is now available in a new version. Previous versions are no longer available.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
