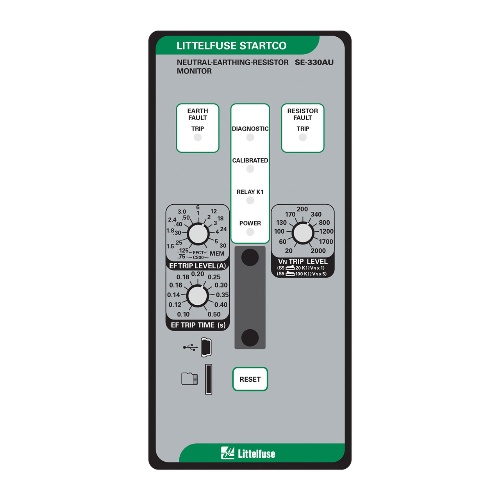

Littelfuse SE-330AU-25-00 NGR Mon Au 48vdc Dual Sc Fbr K4 No
Normally In Stock
Code: 565637
Littelfuse SE-330AU-25-00 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$8648.59
Sale Price
$7207.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-25-00 is a conformally coated relay device designed for resistance grounded AC systems. It operates as a fail-safe with 2 Form A and 2 Form C relay contacts. With a reset switch and remote N.O. contact, it offers ease of use. It has standard harmonic filtering and supports USB and Ethernet communication. The device has a supply voltage range of 28-52V AC and 36-72V DC. It also features latching or autoreset options, a 4-20mA analog output current, and adjustable trip levels and times. This updated version is now available, while the old version is no longer offered.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
