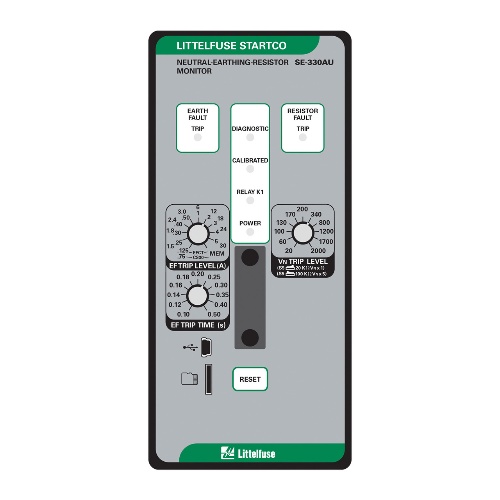

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Littelfuse SE-330AU-24-00 NGR Mon Au 48vdc Sc Fbr/Rj45 K4 No
Normally In Stock
Code: 565635
Littelfuse SE-330AU-24-00 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$8648.59
Sale Price
$7207.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-24-00 is a conformally coated relay with 2 Form A and 2 Form C contacts. It operates as a fail-safe with IEEE Device Numbers 50G-50N-51G-51N-59N-86. It can be reset using a front-panel switch or a remote N.O. Contact. It offers standard harmonic filtering and is suitable for resistance grounded AC systems. It operates on supply voltages of 28-52V AC and 36-72V DC. It can be auto-reset or latching. It offers USB and Ethernet communication options, along with analog output current of 4-20mA. It provides GF trip levels of 0.125-30.0A and RF trip levels of 20-2000V (systems up to 5kV) and 100-10000V (systems over 5kV). The RF trip time is 12 seconds. The new revision is now available, while the old revision is no longer available.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
