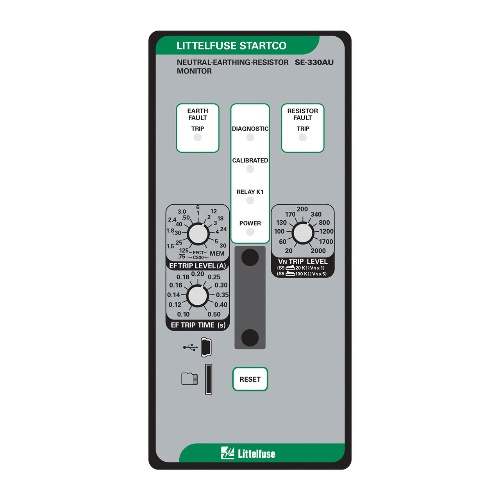

Littelfuse SE-330AU-26-01 NGR Mon Au 48vdc Dual Rj45 61850 K4 NC
Normally In Stock
Code: 565640
Littelfuse SE-330AU-26-01 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$9261.28
Sale Price
$7717.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-26-01 relay is a fail-safe device designed for resistance grounded AC systems. It features 1 Form A, 1 Form B, or 2 Form C relay contacts, with a reset available through a front-panel switch or remote N.O. contact. With a supply voltage of 28-52V AC and 36-72V DC, it offers standard harmonic filtering and supports communication via USB and IEC61850 (Dual RJ45). The relay provides reliable protection with GF trip times of 0.1-0.5 seconds and trip levels of 0.125-30.0A for ground faults and 20-2000V for RF trips (systems up to 5kV) or 100-10000V (systems over 5kV). It also offers analog output current of 4-20mA for monitoring purposes. The new revision is now available, while the old revision is no longer available.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
