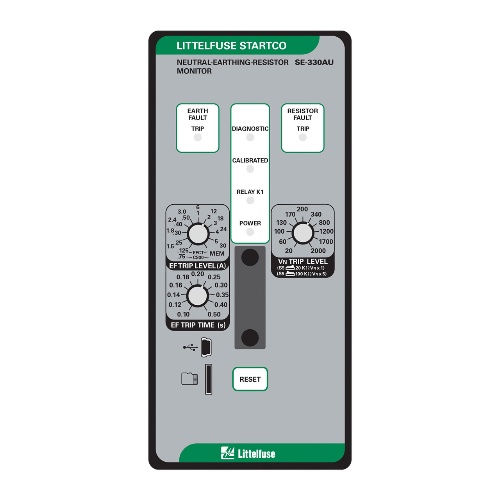

Littelfuse SE-330AU-24-01 NGR Mon Au 48vdc Sc Fbr/Rj45 K4 NC
Normally In Stock
Code: 565636
Littelfuse SE-330AU-24-01 - SE-330AU Series – Neutral-Earthing-Resistor Monitor Series - 28-52 Volt, 36-72 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$8648.59
Sale Price
$7207.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse SE-330AU-24-01 is a conformally coated device used for resistance grounded AC systems. It operates at frequencies of 50 or 60 Hz and features relay contacts with 1 Form A, 1 Form B, or 2 Form C configurations. With fail-safe operation and a selection of IEEE device numbers, it offers flexibility for various applications. Other notable features include front-panel switch or remote N.O. contact reset options, standard harmonic filtering, and multiple supply voltage options. It also offers communication capabilities with USB and Ethernet. The device provides analog output current, GF trip time, GF trip level, and RF trip level settings. With a quick RF trip time of 12 seconds and availability of the new revision, it ensures efficient and reliable performance.
Specifications
Manufacturer
Littelfuse
Component
Neutral Grounding Resistor Monitor
Coil Voltage Rating
28-52 Volt
Coil Voltage Rating
36-72 Volt (DC)
Features
The SE-330AU series is an advanced earth-fault and earthing-resistor monitoring relay for low- and medium-voltage transformers and generators. It monitors neutral current, neutral-to-earth voltage, and neutral-to-earth resistance. It provides continuous monitoring of the neutral-to-earth path to verify that the neutral-earthing resistor (NER) is intact. An open NER renders current-sensing, earth-fault protection inoperative and could result in a false belief that the system is functioning properly.
