Littelfuse EL731-04-00 Ac/DC Earth-Lkge Relay, 75-275v, Modbus
Normally In Stock
Code: 565407
Littelfuse EL731-04-00 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 120-240 Volt, 120-240 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3796.40
Sale Price
$3163.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

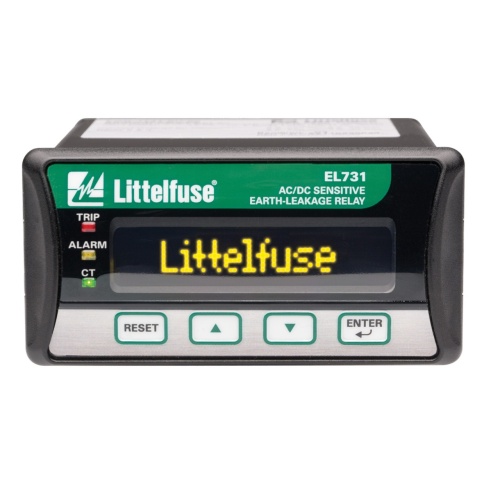

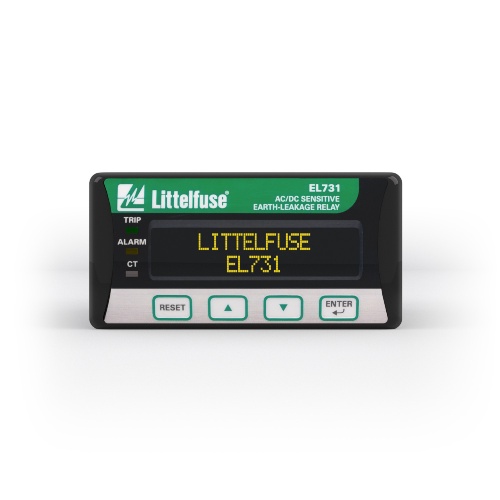

Littelfuse EL731-04-00 is a conformally coated relay with 3 Form C (N.O./N.C.) contacts and fail-safe/non-fail-safe operation. It supports IEEE device numbers 38-49-50G-50N-51G-51N-79G and offers front-panel switch/remote N.O. contact reset. With standard harmonic filtering, it caters to solidly grounded AC/DC systems and resistance grounded AC systems. The supply voltage is 120/240V AC/DC, and it has latching trip/non-latching alarm options. It communicates through Modbus TCP and has a temperature sensor configuration with single PTC/RTD. Mounting can be done using DIN, panel, or optional surface methods.
Specifications
Manufacturer
Littelfuse
Component
Ground-Fault Relay
Coil Voltage Rating
120-240 Volt
Coil Voltage Rating
120-240 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
