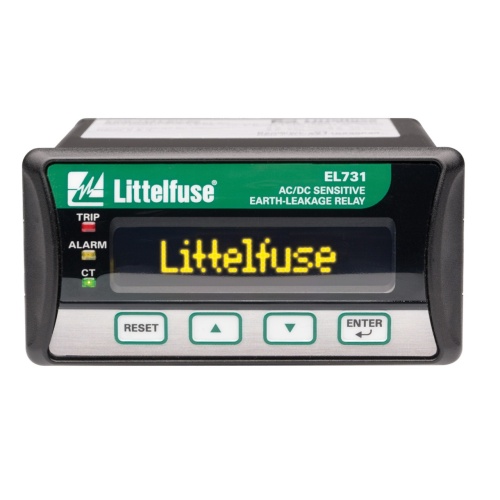

Littelfuse EL731-02-00 Ac/DC Earth-Lkge Relay,75-275v,Profibus
Normally In Stock
Code: 565403
Littelfuse EL731-02-00 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 120-240 Volt, 120-240 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3796.40
Sale Price
$3163.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-02-00 is a versatile relay with a frequency range of 0-6000. It is conformally coated for protection and has a 3 Form C relay contacts configuration. With fail-safe/non-fail-safe operation, IEEE device numbers 38-49-50G-50N-51G-51N-79G, and a front-panel switch or remote N.O. contact for reset. It provides standard harmonic filtering, options for supply voltage (ac/dc), and mount method (DIN, panel, or surface). Additionally, it supports auto/manual reset and communication via Profibus. GF Trip Time ranges from 0.05 to 2.00s, and GF Trip Level ranges from 0.03 to 5.00A. Suitable for solidly grounded AC/DC and resistance grounded AC systems.
Specifications
Manufacturer
Littelfuse
Component
Ground-Fault Relay
Coil Voltage Rating
120-240 Volt
Coil Voltage Rating
120-240 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
