Littelfuse EL731-01-10 Ac/DC Elr,75-275v,Devicenet,As 2081:2011
Normally In Stock
Code: 565402
Littelfuse EL731-01-10 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 120-240 Volt, 120-240 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3796.40
Sale Price
$3163.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

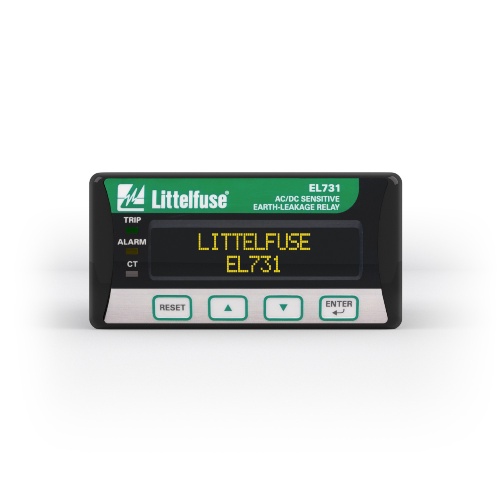

Littelfuse EL731-01-10 is a conformally coated relay device with 3 Form C relay contacts (N.O./N.C.) and fail-safe/non-fail-safe operation. It is suitable for solidly grounded AC, solidly grounded DC, and resistance rounded AC systems. With a supply voltage of 120/240V AC and DC, it offers front-panel switch/remote N.O. contact reset options. Equipped with standard harmonic filtering and a single PTC/RTD temperature sensor, this device also features a latching trip/non-latching alarm reset type. It supports DeviceNet communications and offers a GF trip level range of 0.03-5.00A with trip times ranging from 0.05-2.00 seconds. Mounting options include DIN (optional), panel, and surface.
Specifications
Manufacturer
Littelfuse
Component
Ground-Fault Relay
Coil Voltage Rating
120-240 Volt
Coil Voltage Rating
120-240 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
