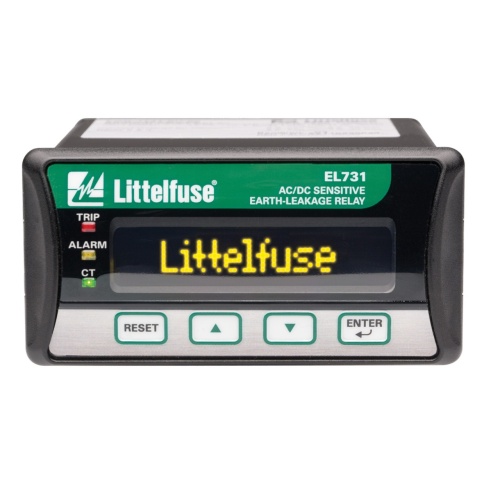

Littelfuse EL731-00-10 Ac/DC Earth-Lkge Relay, Aus, 75-275v, No
Normally In Stock
Code: 565400
Littelfuse EL731-00-10 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 120-240 Volt, 120-240 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$2291.23
Sale Price
$1909.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-00-10 is a conformally coated product with a frequency range of 0-6000 Hz. It features a 3 Form C relay contact configuration and fail-safe/non-fail-safe operation. The device numbers supported are 38, 49, 50G, 50N, 51G, 51N, and 79G. It supports front-panel switch/remote N.O. contact reset and comes with standard harmonic filtering. The trip time range is 0.05 to 2.00 seconds. It is suitable for solidly grounded AC/DC and resistance grounded AC systems. It supports both 120V and 240V AC/DC supply voltages. The reset type options include latching trip and non-latching alarm. It has no communication capabilities. The trip level range is 0.03 to 5.00A. It supports a single PTC/RTD temperature sensor configuration and can be mounted on DIN panels or surfaces.
Specifications
Manufacturer
Littelfuse
Component
Ground-Fault Relay
Coil Voltage Rating
120-240 Volt
Coil Voltage Rating
120-240 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
