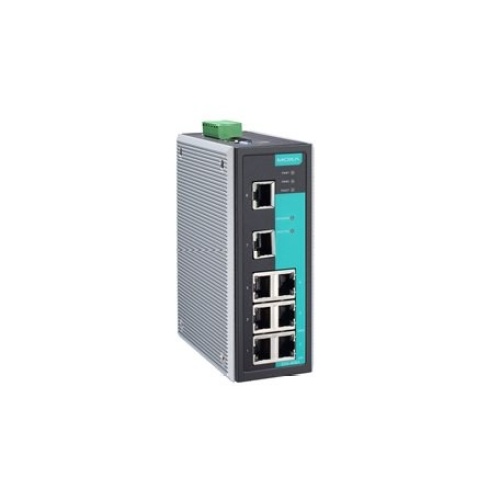

Moxa EDS-408A-3M-ST-T Managed Switch
Normally In Stock
Code: 8973
Moxa EDS-408A-3M-ST-T Entry-level managed Ethernet Switch (Din Rail Mount) with 8 ports including 5 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, Extended Temperature -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1838.18
Sale Price
$1531.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-408A-3M-ST-T Entry-level managed Ethernet Switch with 5 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, -40 to 75 C operating temperature. Ideal for industrial applications, such as widely dispersed wind farm networks that need more long-haul transmission capability in a standalone Ethernet Switch. Fiber transmission offers the benefit of greater EMI protection to prevent unstable network transmissions and data loss.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Fiber Ports Multi Mode Fast (100 Mbps)
3 ST Multi Mode
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber ST Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber ST Port Multi
Min. # Fast Fiber SC Ports
At Least 3 Fast Fiber ST Port Multi
Switch Copper Ports Fast (100 Mbps)
5 RJ45 Ports
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Model
Moxa EDS
Switch All Ports
5 Fast Copper RJ45-3 Fast Fiber ST Multi
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management
