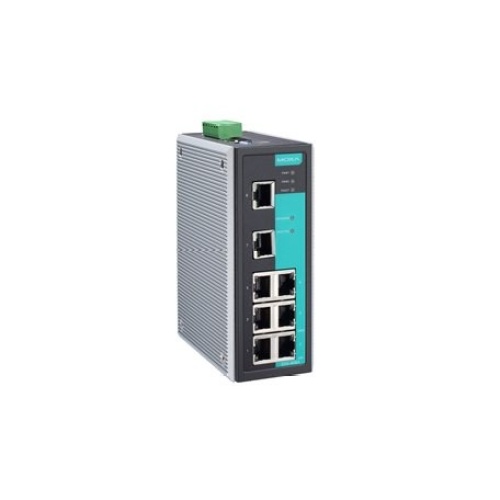

Moxa EDS-408A-3M-SC Managed Switch
Normally In Stock
Code: 8952
Moxa EDS-408A-3M-SC Entry-level managed Ethernet Switch (Din Rail Mount) with 8 ports including 5 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fiber Multi-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1654.28
Sale Price
$1378.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-408A-3M-SC Entry-level managed Ethernet Switch with 5 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fiber Multi-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature. Ideal for industrial applications, such as widely dispersed wind farm networks that need more long-haul transmission capability in a standalone Ethernet Switch. Fiber transmission offers the benefit of greater EMI protection to prevent unstable network transmissions and data loss. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Temperature Range
32F To 140F
Switch Fiber Ports Multi Mode Fast (100 Mbps)
3 SC Multi Mode
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports
At Least 3 Fast Fiber SC Port Multi
Switch Copper Ports Fast (100 Mbps)
5 RJ45 Ports
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Model
Moxa EDS
Switch All Ports
5 Fast Copper RJ45-3 Fast Fiber SC Multi
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management
