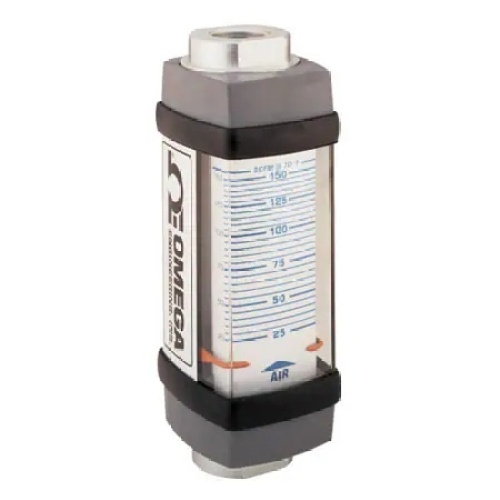

Omega FL7722A Flow Meter
Normally In Stock
Code: 804515
Omega FL7722A Flow Meter
Condition: New
Usually ships Same Day or Next Day$726.18
Sale Price
$605.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Flow Meter, Pneumatic, In-line, Air, 25 SCFM to 250 SCFM, 1000 psi, 3/4 " NPT Female, 116 °C (240 °F), ± 2 %, Direct Read, 302 SS, Al, Polyphenylene Sulfide, Ceramic, FL7700A Series, Each
Specifications
(Instrument-Sensor) Medium
Air
Component
Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 1000 Psi
Features
± 2% Full Scale Accuracy*
± 1% Repeatability
1000 psig Pressure Rating
Calibrated to Read in SCFM @ 100 psig
Accuracy± 2 %, ± 5% with transitional flow
Height2.4 in
Materials, Wetted302 Stainless Steel, Aluminum, Ceramic, Polypropylene
Media CompatibilityAir
Number of Tubes1
Operating Pressure, Max1000 psi
Process Connection TypeNPT Female
Process Temperature, Max116 °C
Repeatability± 1%
ScaleDirect Read
Valve Includedfalse
Water Flow, Max0 m³/s
Width2.1 in
