Code: 778926

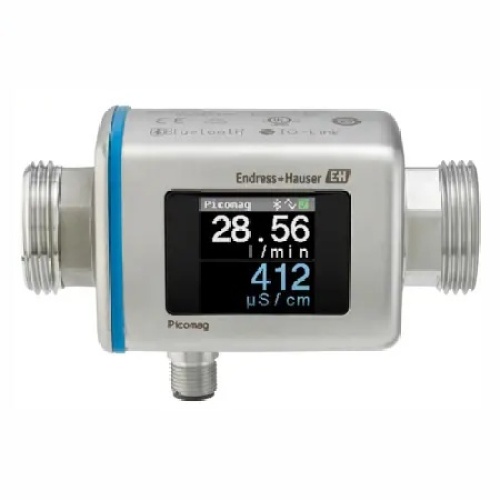

Omega DMA50-AAAAA1 Picomag Flow Meter, DN50 (2")
Normally In Stock
Omega DMA50-AAAAA1 Picomag Flow Meter, DN50 (2")
Condition: New
Usually ships Same Day or Next Day$2129.64
Sale Price
$1774.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Picomag Magnetic Flow Meter, Conductive Fluids, 0.4 gal/min to 198.1 gal/min, 2 ", BSPP, ± 0.8 %, Pulse, Current, Voltage, 316L SS, FKM, PEEK, 18 Vdc to 30 Vdc, Picomag Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) IP Protection
IP67
Component
Electromagnetic Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Acid Solutions
(Instrument-Sensor) Medium
Conductive Liquids
(Instrument-Sensor) Medium
Saltwater
(Instrument-Sensor) Supply Voltage
18- 30 VDC
Features
Reliable measuring and monitoring of industrial water, cooling water, warm water or rinsing water
Simultaneous measurement of flow, temperature and conductivity
Time-saving device configuration even in difficult to reach places thanks to Bluetooth connectivity
Easy data access via intuitive SmartBlue App
Accuracy± 0.8 %
Accuracy Detail± 0.8% o.r. ± 0.2% o.f.s. (of full scale)
ApprovalsUL, Drinking water approval
Cable Length5 m
Conductivity± 5 µS/cm
Data InterfaceBluetooth, IO-Link
Display Note1.4" TFT color display, auto-rotatable (dependent on orientation)
Display TypeTFT LCD
Electrical ConnectionM12 4 pin Male
Enclosure RatingsIP65, IP67
Materials316L Stainless Steel, Polycarbonate
Materials, Wetted316L Stainless Steel, FKM, PEEK
Media CompatibilityAcid Solutions, Conductive Liquids, Saltwater
Number of Outputs3
Operating Pressure, Max232 psi
Output Detail4 to 20 mA, 2 to 10 V, Pulse
Output SignalCurrent, Voltage, DC Pulse
Power Consumptionmax 3 W
Process Connection NoteStandard: external thread (G½", G¾", G1", G2")
Optional: adapter sets for internal (G) and external (R, NPT) threads, Tri-clamp, Victaulic
Repeatability± 0.2%
Supply Power TypeDC
Supply Voltage18 to 30 Vdc
Simple and easy to navigate allowing quick access to device and diagnostic functions
Wireless configuration/data retrieval for configuration of display outputs, flow direction, units, etc
Up to 10m separation making those difficult to assess installations not so difficult anymore.
Compatible with all standard fieldbus systems
Comprehensive remote data access
Simple set up, no additional technology tools
Automatic configuration after device replacement
Simple wiring connections
Future Proof - Industry 4.0 ready
