Code: 790160

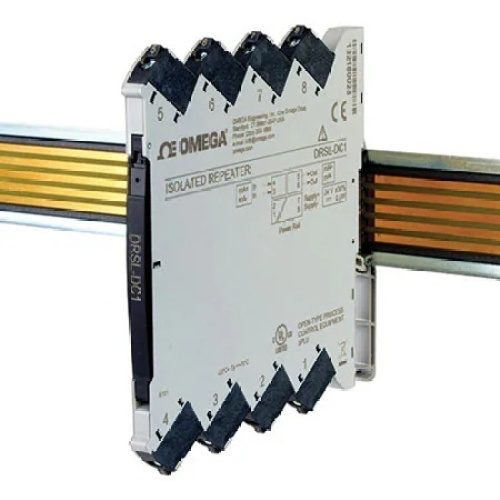

Omega DRSL-DC1 ISOLATED REPEATER, MA CE
Normally In Stock
Omega DRSL-DC1 ISOLATED REPEATER, MA CE
Condition: New
Usually ships Same Day or Next Day$366.16
Sale Price
$305.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
DIN Rail Signal Conditioner, DC Supply, 0 mA to 20 mA I/P, Process I/P & O/P Class, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-20.5 Ma
Conditioner Supply Voltage
16.8-31.2 Vdc
Features
Isolation and Conversion of Process Voltage or Current Signals
Power Supply and Signal Isolator for 2-Wire Transmitter
Slimline Housing—Only 6 mm (0.24') Wide
Multiple Signal Ranges (DIP-Switch Selectable)
Accuracy± 0.05 %
ApprovalsCE, UL, RoHS
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Conversion Rate1:1
Current Measurement Range0 to 20.5 mA
Electrical Output0 to 20.5 mA
EMC Immunity NoteExtended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
Length115 mm
Load ResistanceCurrent Output: 23 mA/600 Ω max
MountingDIN Rail 35 mm Standard, EN 60715
MTBF284 yrs
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueProcess
Relative Humidity0 to 95% RH (non-condensing)
Response Time< 7 ms
Response Time NoteResponse Time (0 to 90%, 100 to 10%): <7 ms
Screw Terminal Torque0.5 Nm
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Supply Voltage16.8 to 31.2 Vdc
Temperature Coefficient<±0.01% of span/°C
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
