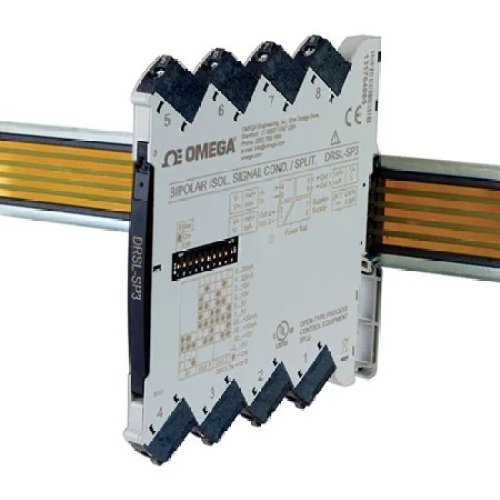

Omega DRSL-SP3 BIPOLAR INPUT SIG SPLITTER CE
Normally In Stock
Code: 790086
Omega DRSL-SP3 BIPOLAR INPUT SIG SPLITTER CE
Condition: New
Usually ships Same Day or Next Day$465.68
Sale Price
$388.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Isolated Repeater, DC Supply, ± 20 mA, ± 10 Vdc I/P, Process I/P & Splitter O/P Class, 300 Isolation, Switch, Each
Specifications
Conditioner Number Input Signals
2 Input Signals
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Component
Repeater/Splitter
Conditioner Supply Voltage
16.8-31.2 Vdc
Conditioner Output Signal Range
0-23 Ma
Features
Isolation and Conversion of Bipolar Process Voltage and Current Signals to Unipolar/Bipolar Signals
Splitter Function: 1 Process Input, 2 Process Outputs
Slimline Housing—Only 6 mm (0.24') Wide
Multiple Signal Ranges (DIP-Switch Selectable)
ApprovalsCE, UL, RoHS
Bandwidth100 Hz or 10 Hz (selectable via DIP-switch)
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output0 to 23 mA
EMC Immunity NoteExtended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
IsolationIsolation: Input/output 1/output 2/supply
Isolation Voltage (Test): 2.5 kVac
Isolation Voltage (Working):300 Vac
Length115 mm
MountingDIN Rail 35 mm Standard, EN 60715
MTBF187 yrs
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueSplitter
Power Consumption0.8 W, Internal - max 0.65 W
Relative Humidity0 to 95% RH (non-condensing)
Screw Terminal Torque0.5 Nm
Span, MaxCorresponds to the presently selected DIP switch output range
StabilityLoad Stability: ≤0.002% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Voltage Loss<1 V
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
