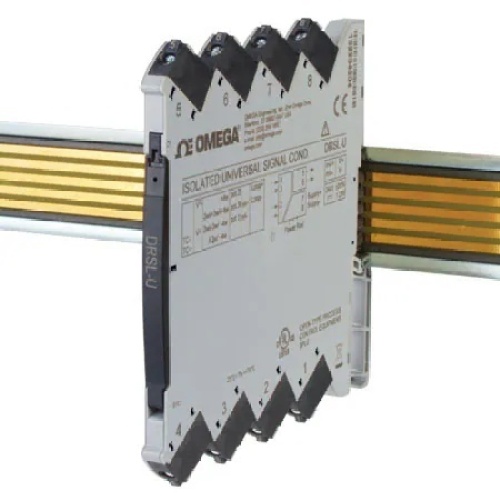

Omega DRSL-U UNIV INPUT SIG COND CE
Normally In Stock
Code: 790177
Omega DRSL-U UNIV INPUT SIG COND CE
Condition: New
Usually ships Same Day or Next Day$427.62
Sale Price
$356.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, DC Supply, 0 V to 12 V I/P, 0 mA to 20 mA, 0 V to 10 Vdc O/P, Universal I/P & Process O/P Class, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Supply Voltage
16.8-31.2 Vdc
Conditioner Number Input Signals
6 Input Signals
Features
Universal Input–Accepts Thermocouple, RTD, Linear Resistance, Potentiometer, Voltage or Current Input
Easily Configured Using DRSL-DISPLAY Programming Interface or electronic hardware switch
Slimline Housing–Only 6 mm (0.24') Wide
High Accuracy
ApprovalsCE, UL, RoHS
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output4 to 20 mA
EMC Immunity NoteNAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
Isolation300 Vac
LED IndicatorsStatus LED: Green LED indicates
operational status of the unit and
input sensor
Normal Operation: Flashes for
15 ms at 13 Hz rate
Sensor Error: Flashes for 15 ms
at 1 Hz rate
Hardware Failure: LED off
Length115 mm
Load ResistanceCurrent Output: 20 mA/600 Ω/15 Vdc max, Voltage Output:>10 kΩ
MountingDIN Rail 35 mm Standard, EN 60715
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueProcess
Power Consumption1.2 W, Internal - max 0.65 W
Relative Humidity0 to 95% RH (non-condensing)
Screw Terminal Torque0.5 Nm
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Temperature Coefficient NoteAll Input Types: ≤± 0.01% of span/°C
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
