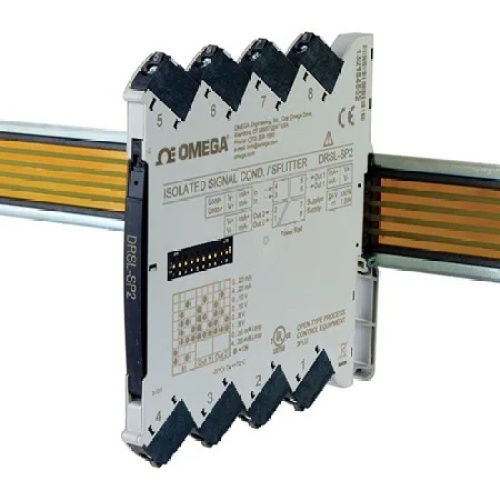

Omega DRSL-SP2 DC INPUT SIG SPLITTER CE
Normally In Stock
Code: 790085
Omega DRSL-SP2 DC INPUT SIG SPLITTER CE
Condition: New
Usually ships Same Day or Next Day$427.58
Sale Price
$356.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Isolated Repeater, DC Supply, 0 mA to 20 mA, 0 Vdc to 10 Vdc I/P, Process I/P & Splitter O/P Class, Each
Specifications
Conditioner Number Input Signals
2 Input Signals
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Component
Repeater/Splitter
Conditioner Output Signal Range
0-20.5 Ma
Conditioner Supply Voltage
16.8-31.2 Vdc
Features
Isolation and Conversion of Process Voltage or Current Signals
Splitter Function: 1 Process Input–2 Process Outputs
Power Supply and Signal Isolator for 2-Wire Transmitter
Slimline Housing–Only 6 mm (0.24') Wide
ApprovalsCE, UL, RoHS
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output0 to 20.5 mA
EMC Immunity NoteExtended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
IsolationIsolation: Input/output 1/output 2/supply
Isolation Voltage (Test): 2.5 kVac
Isolation Voltage (Working):300 Vac
Length115 mm
Load ResistanceCurrent Output : 23 mA/300 Ω max
Voltage Output : >10 kΩ min
MountingDIN Rail 35 mm Standard, EN 60715
Noise Calibration>60 dB
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueSplitter
Power Consumption1.2 W, Internal - max 0.65 W
Relative Humidity0 to 95% RH (non-condensing)
Screw Terminal Torque0.5 Nm
Span, MaxCorresponds to the presently selected DIP switch output range
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Voltage Loss<1.5 V
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
