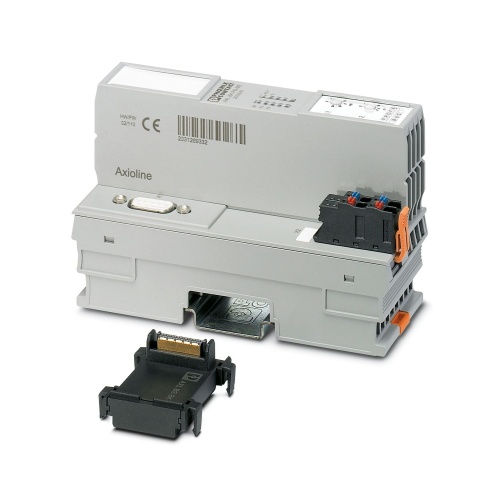

Phoenix Contact 2688530 Bus coupler AXL F BK PB
Normally In Stock
Code: 71046
AXL F BK PB Phoenix 2688530 I/O component Axioline Bus Axioline F connector 9.6 kbps ... 12 Mbps Push-in connection,D-SUB-9 female connector,Bus base module,Micro USB type B PLC & IO
Condition: New
Usually ships Same Day or Next Day$810.05
Sale Price
$675.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688530 The Axioline F bus coupler features a PROFIBUS DP interface, is compatible with a D-SUB-9 female connector, operates at a local transmission speed of 100 Mbps, and provides a degree of protection equivalent to IP20, complete with the included bus base module and Axioline F connector.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
9.6 Kbps ... 12 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
D-SUB-9 Female Connector
PLC & IO Connection Method
Micro USB Type B
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
DP/V1 for class 1 and class 2 masters
Electrical isolation between PROFIBUS interface and logic

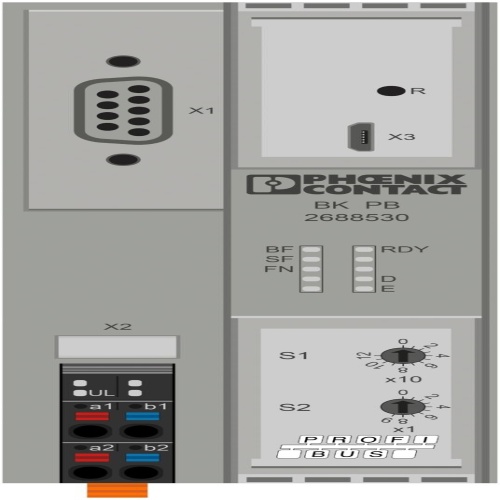

Rotary coding switches for setting the PROFIBUS address
PROFIBUS connection via 9-pos. D-SUB socket
PROFIBUS data transmission speed of 9.6 kbps to 12 Mbps
Dynamic configuration is supported
I&M functions
Firmware can be updated
Typical cycle time of the Axioline F local bus is around 10 μs
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 2.20 or later)
