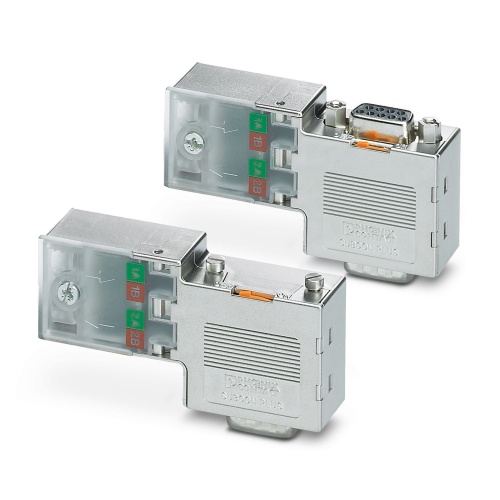

Phoenix Contact 2313698 D-SUB bus connector SUBCON-PLUS-PROFIB/90/SC
Normally In Stock
Code: 152842
Phoenix Contact 2313698 - IP40 - Screw Connection
Condition: New
Usually ships Same Day or Next Day $64.72
Sale Price
$53.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

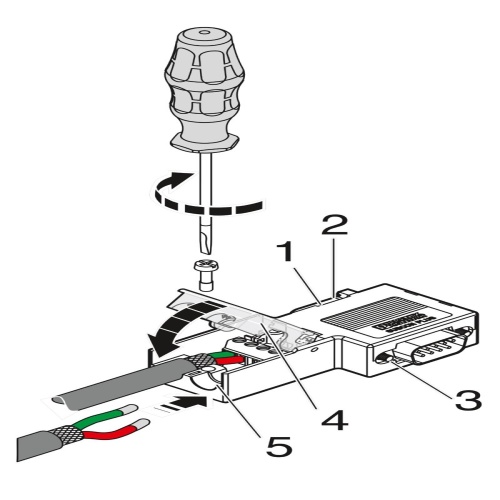

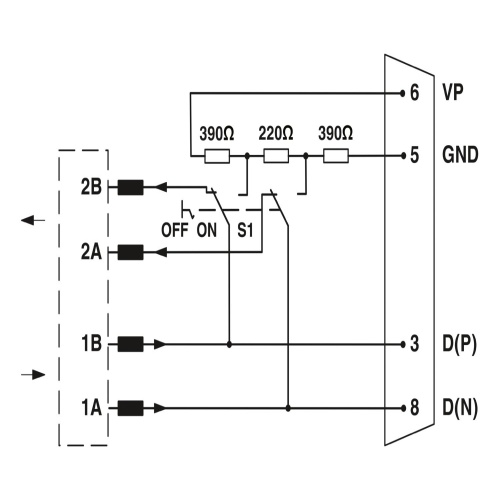

Phoenix Contact 2313698 A D-SUB connector with 9 pins is used for a 90° cable outlet and supports a bus system based on PROFIBUS DP technology, capable of transmitting data at speeds up to 12 Mbps. The termination resistor can be adjusted using a slide switch, while the pin connections are assigned as follows: 3, 5, 6, and 8; additional terminal blocks allow for screw connection.
Specifications
Connector protection
IP40
Manufacturer
Phoenix Contact
Component
D-SUB
Sub Component
Bus Connector
Features
Suitable for all common Fast Connect PROFIBUS cables and RS-485 bus lines
