Code: 589712

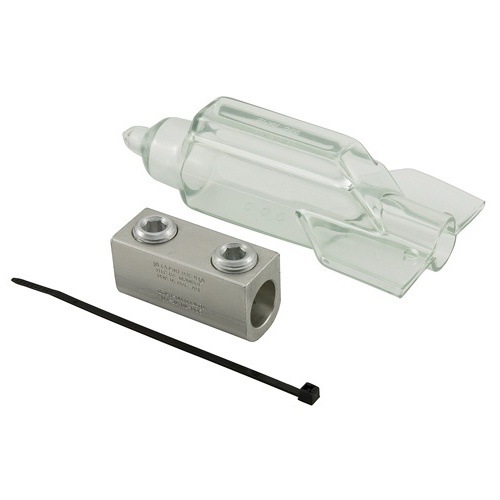

Ilsco SPAR-1/0 Splice - Aluminum, 1/0-14 AWG, Stranded, 600 V, Clear
Normally In Stock
Ilsco SPAR-1/0 - RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 1/0-14, UL, CSA
Condition: New
CALL FOR LEAD TIME$51.74
Sale Price
$39.80
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco SPAR-1/0 - RocketSplice Insulated Aluminum Splicer/Reducer is a dual-rated connector for 1/0-14 conductors. UL and CSA listed, with a 600V rating and 90°C temperature. Features mechanical connection, plated aluminum construction, and tin finish. Suitable for copper and aluminum conductors, with a parallel wire orientation and 1-port design. Drive Size: 3/16”, Drive Type: Internal Hex.
Specifications
Color
Transparent
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Insulation Material
Plastisol
Terminal for Wire Gauge
1/0-14 AWG
Features
Transparent flexible insulating cover
Range adjustable trim-to-fit tip
Unique shape and compact design
Connector, cover and cable tie packaged together
UL Listed and CSA Certified for 600 volts
Dual Rated
