Code: 589047
Ilsco SPAR-500 Splice - Aluminum, 500-4 AWG, Stranded, 600 V, Clear
Normally In Stock
Ilsco SPAR-500 - RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 500-4, UL, CSA
Condition: New
CALL FOR LEAD TIME$200.84
Sale Price
$154.49
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

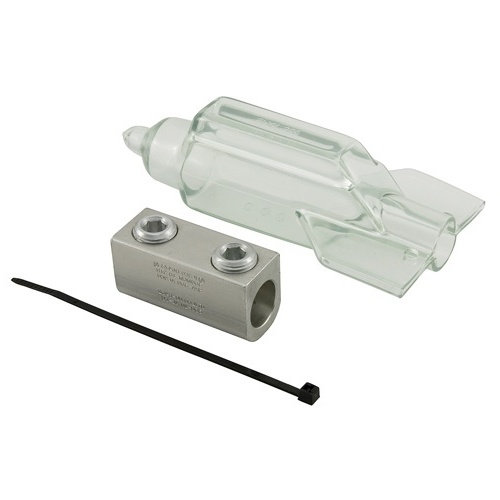

Ilsco SPAR-500 - RocketSplice Insulated Aluminum Splicer/Reducer for 500-4 kcmil conductors, UL listed with 600V voltage rating. Dual rated for copper and aluminum, with Plastisol insulation and tin finish. Mechanical connection with 1 wire binding screw per port. Suitable for stranded copper and aluminum, with 90°C temperature rating. Ideal for electrical applications.
Specifications
Color
Transparent
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Insulation Material
Plastisol
Terminal for Wire Gauge
500-4 AWG
Features
Transparent flexible insulating cover
Range adjustable trim-to-fit tip
Unique shape and compact design
Connector, cover and cable tie packaged together
UL Listed and CSA Certified for 600 volts
Dual Rated
