Code: 589046
Ilsco SPAR-350 Splice - Aluminum, 350-10 AWG, Stranded, 600 V, Clear
Normally In Stock
Ilsco SPAR-350 - RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 350-10, UL, CSA
Condition: New
CALL FOR LEAD TIME$134.38
Sale Price
$103.37
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

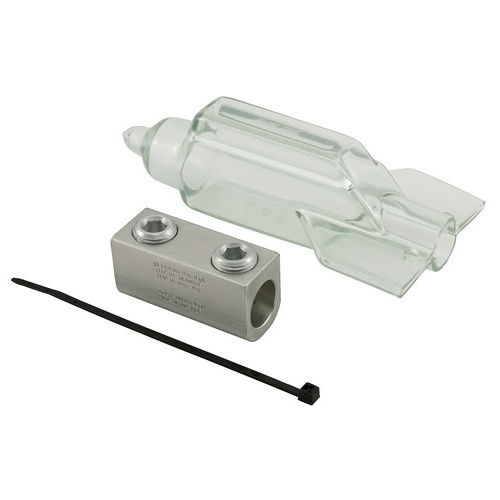

Ilsco SPAR-350 - The RocketSplice Insulated Aluminum Splicer/Reducer is a dual-rated connector with a conductor range of 350-10 kcmil for both copper and aluminum wires. It is UL and CSA listed, with a temperature rating of 90°C and a voltage rating of 600V. This mechanical connection features tin-finished aluminum construction and includes one wire binding screw per port. Perfect for parallel wire orientation setups, with a 5/16 drive size and internal hex drive type. Ideal for a variety of electrical applications.
Specifications
Color
Transparent
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Insulation Material
Plastisol
Terminal for Wire Gauge
350-10 AWG
Features
Transparent flexible insulating cover
Range adjustable trim-to-fit tip
Unique shape and compact design
Connector, cover and cable tie packaged together
UL Listed and CSA Certified for 600 volts
Dual Rated
