Code: 588748
Ilsco SPAR-4 Splice - Aluminum, 4-14 AWG, Stranded, 600 V, Clear
Normally In Stock
Ilsco SPAR-4 - RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 4-14, UL, CSA
Condition: New
CALL FOR LEAD TIME$35.55
Sale Price
$27.35
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco SPAR-4 - RocketSplice Insulated Aluminum Splicer/Reducer, dual rated for conductor range 4-14. UL and CSA listed, with 600V voltage rating and 90°C temperature rating. Mechanical connection with tin finish and Plastisol insulation. Suitable for copper and aluminum stranded/solid conductors. 1/4" wire binding screw size with steel hardware. Easy installation with slotted drive type.
Specifications
Color
Transparent
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4-14 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Insulation Material
Plastisol
Features

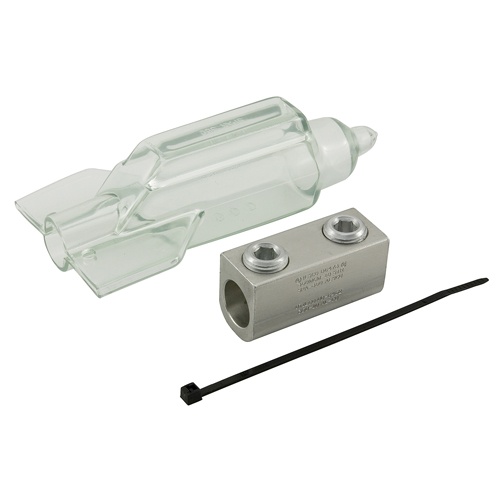

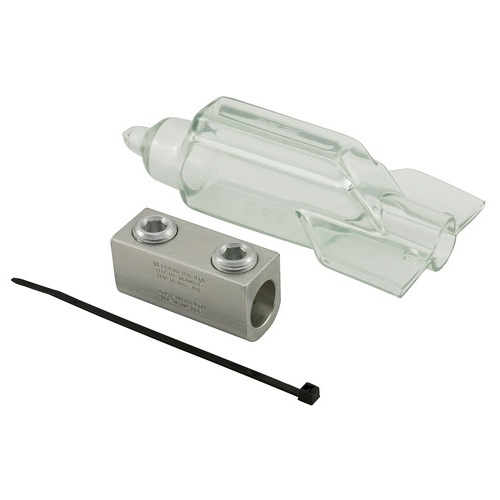

Transparent flexible insulating cover
Range adjustable trim-to-fit tip
Unique shape and compact design
Connector, cover and cable tie packaged together
UL Listed and CSA Certified for 600 volts
Dual Rated
