Code: 588985

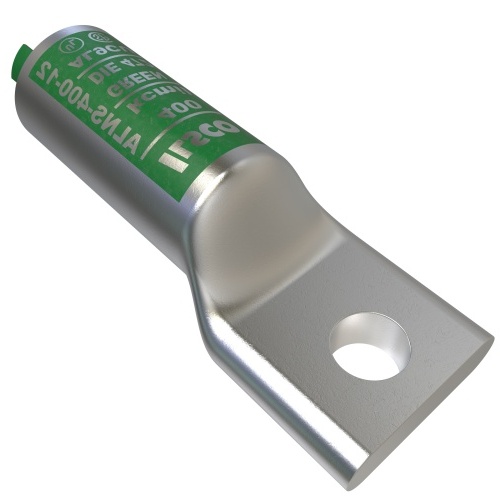

Ilsco ALNS-400-12 Compression Lug - Aluminum, 400 MCM, Stranded, 35 kV
Normally In Stock
Ilsco ALNS-400-12 - Surecrimp Aluminum Compression Lug, Conductor Size 400, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$62.17
Sale Price
$47.82
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-400-12 - Surecrimp Aluminum Compression Lug, 400 Conductor Size, 1 Hole, 1/2in Bolt Size, Long Barrel, Tin Plated, UL/CSA Listed, 35 kV Voltage Rating. Dual rated for AL/CU. Tang dimensions: 1.302"L x 1.623"W x 0.426"T. Suitable for 400 kcmil - 4/0 Stranded Conductors. DE-OX® included. Mounting hole diameter: 14.2748mm.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
400 MCM
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
