Code: 588829

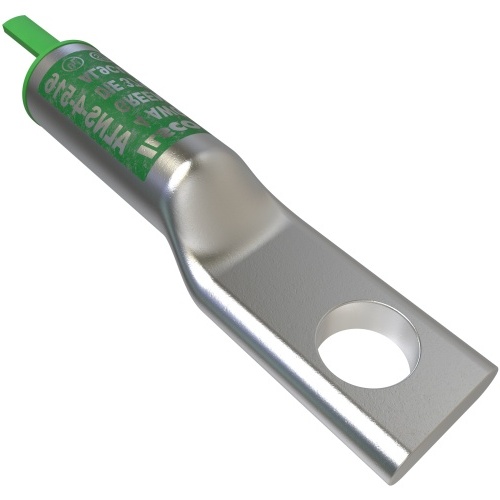

Ilsco ALNS-4-516 Compression Lug - Aluminum, 4 AWG, Stranded, 35 kV, 5/16", Silver
Normally In Stock
Ilsco ALNS-4-516 - Surecrimp Aluminum Compression Lug, Conductor Size 4, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$13.52
Sale Price
$10.40
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-4-516 - Surecrimp Aluminum Compression Lug is a long barrel lug with a 5/16in bolt size, suitable for 4 Str copper or aluminum conductors. Connectors are UL and CSA listed with a 35kV voltage rating. Features include tin plating, 180° connecting angle, and DE-OX® coating. Mounting hole diameter is 0.343in.
Specifications
Color
Silver
Terminal Stud Size Opening
5/16"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4 AWG
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
