Code: 588309

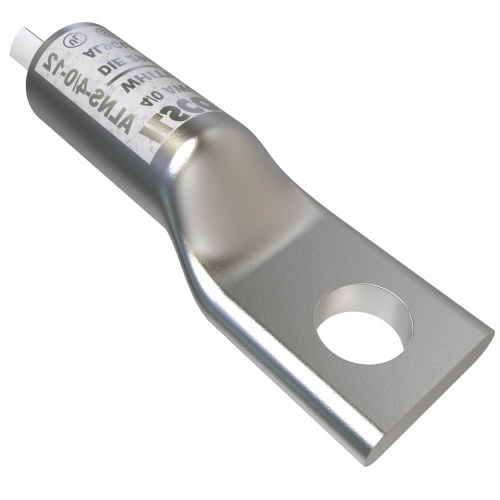

Ilsco ALNS-4/0-12 Compression Lug - Aluminum, 4/0 AWG, Stranded, 35 kV
Normally In Stock
Ilsco ALNS-4/0-12 - Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$48.35
Sale Price
$37.19
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-4/0-12 - Surecrimp Aluminum Compression Lug for 4/0 aluminum stranded conductors. Tin-plated, UL and CSA listed with a voltage rating of 35kV. Long barrel design, 1/2in bolt size, 1 hole, no sight window. DE-OX® included. Color: Silver. Dual rated for aluminum and copper. Mounting hole diameter: 0.562in. Temperature rating: 90°C. 180° connecting angle.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4/0 AWG
Terminal Stud Size Opening
1/2"
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
