Code: 588310

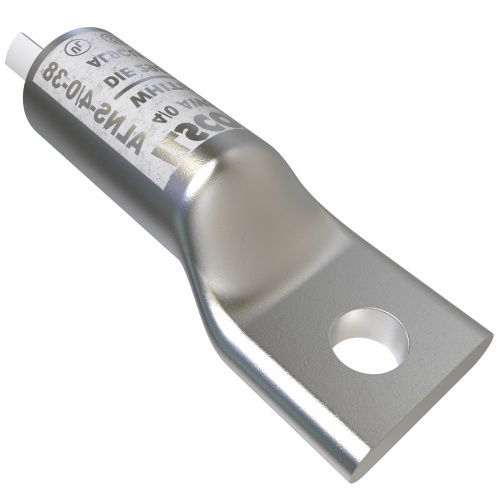

Ilsco ALNS-4/0-38 Compression Lug - Aluminum, 4/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Ilsco ALNS-4/0-38 - Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$47.32
Sale Price
$36.40
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-4/0-38 - Surecrimp Aluminum Compression Lug, 4/0 conductor size, 3/8in bolt size, long barrel with tin finish. UL listed, CSA certified. For 35kV applications with a temperature rating of 90°C. Compression connection, suitable for stranded aluminum and copper conductors. DE-OX® technology included. Mounting hole diameter 10.3124mm, barrel length 38.989mm.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4/0 AWG
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
