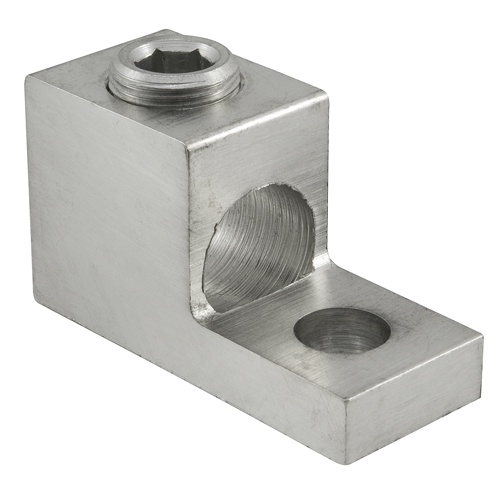

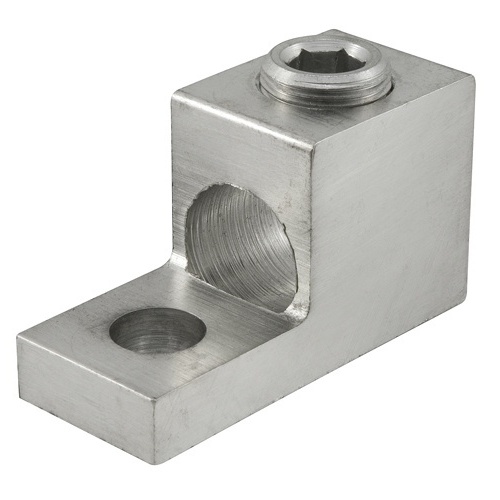

Ilsco TA-800-S Mechanical Lug - Aluminum, 800-3/0 AWG, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Code: 588969
Ilsco TA-800-S - Aluminum Mechanical Lug, Conductor Range 800-3/0, 1 Port, 1 Hole, 5/8in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$42.51
Sale Price
$32.70
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-800-S - Aluminum Mechanical Lug, 1 Port, 1 Hole, 5/8in Bolt Size, 1-3/4in Hole Spacing, Conductor Range 800-3/0, Tin Plated for added durability. UL, CSA, NEMA Code S-588-3 listed, dual rated for 35 kV. Suitable for stranded aluminum conductors. Temperature rating of 90°C. Drive Type: Internal Hex. Wire Binding Torque: 500.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
5/8"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
800-3/0 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
