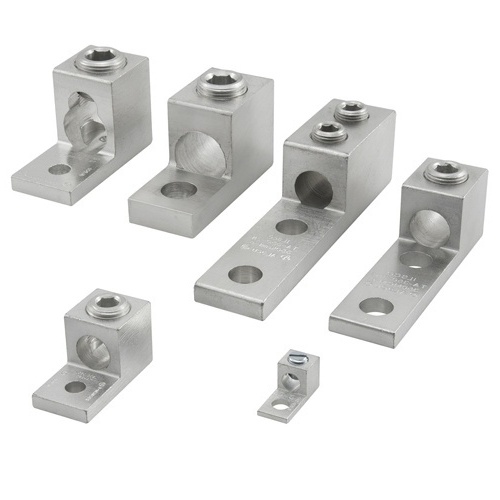

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

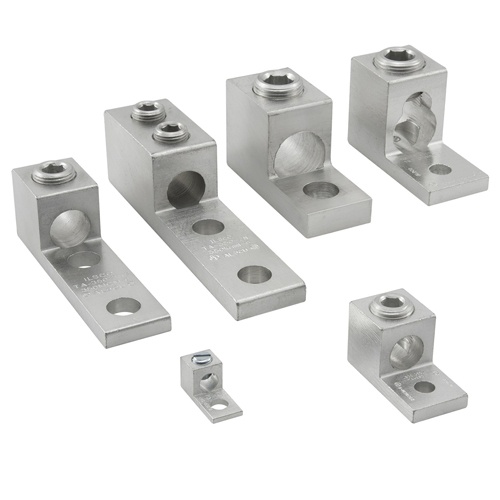

Ilsco TA-800-2N Mechanical Lug - Aluminum, 800-300 MCM, Stranded, 35 kV
Normally In Stock
Code: 588967
Ilsco TA-800-2N - Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-300, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, 2 Screws, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$58.17
Sale Price
$44.75
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-800-2N - Aluminum Mechanical Lug, Dual Rated for 800-300 kcmil conductors, with 1 port, 2 holes, and 1/2in bolt size. Tin plated finish, UL & CSA listed, rated for 35kV. Suitable for stranded copper/aluminum conductors. Mounting hole spacing of 1.75in, with 2 wire binding screws. Ideal for industrial electrical connections.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
800-300 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
