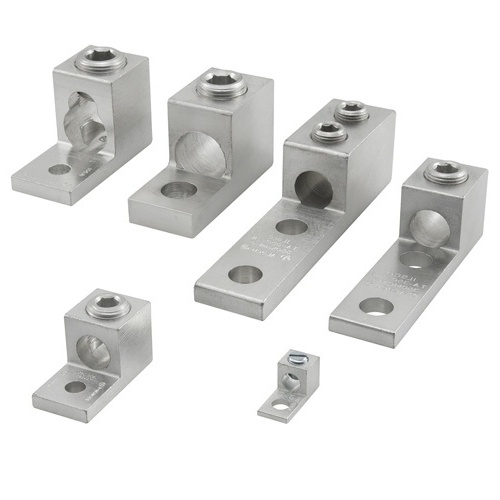

Ilsco TA-800 Mechanical Lug - Aluminum, 800-300 MCM, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Code: 588966
Ilsco TA-800 - Aluminum Mechanical Lug, Conductor Range 800-300, 1 Port, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$33.24
Sale Price
$25.57
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco TA-800 - Aluminum Mechanical Lug, 1 Port, Conductor Range 800-300 kcmil, 5/8in Bolt Size, Tin Plated, UL Listed, CSA Certified, NEMA Code S-588-3. Temperature Rating 90°C, Voltage Rating 35 kV. Suitable for stranded aluminum and copper conductors. Mounting Hole Diameter 16.6624mm, Tang Thickness 12.7mm. Drive Size 1/2. Wire Binding Torque 500.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
5/8"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
800-300 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
