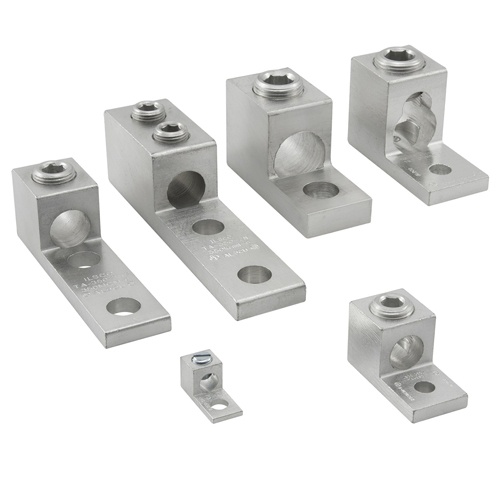

Ilsco TA-800-2NS Mechanical Lug - Aluminum, 800-300 MCM, Stranded, 35 kV
Normally In Stock
Code: 588968
Ilsco TA-800-2NS - Aluminum Mechanical Lug, Conductor Range 800-300, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$51.69
Sale Price
$39.76
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-800-2NS - Aluminum Mechanical Lug with 1 port, 2 holes, and 1/2in bolt size. Tin-plated for enhanced conductivity. UL and CSA listed, rated for up to 35 kV. Suitable for 800-300 kcmil stranded aluminum conductors. Mounting hole spacing of 1-3/4in. Ideal for industrial electrical applications. Temperature rating of 90°C.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
800-300 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
Code: 588968
Ilsco TA-800-2NS Mechanical Lug - Aluminum, 800-300 MCM, Stranded, 35 kV
$51.69
Sale Price
$39.76
