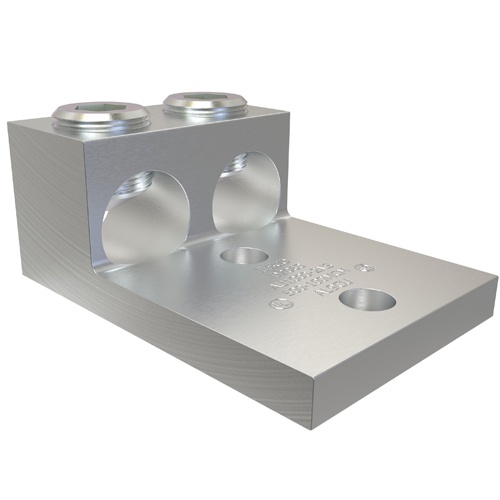

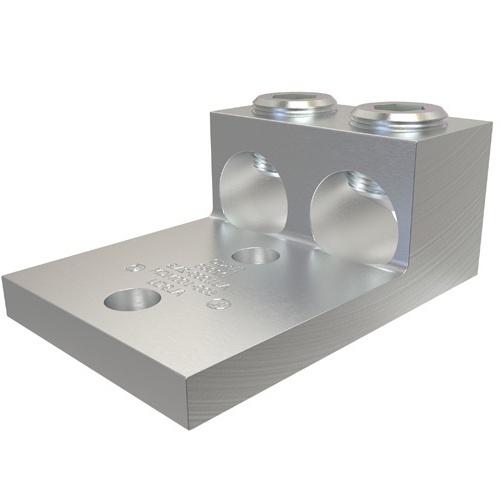

Ilsco AU-1000-2NS Mechanical Lug - Aluminum, 1000-500 MCM, Stranded, 35 kV
Normally In Stock
Code: 588930
Ilsco AU-1000-2NS - Aluminum Mechanical Lug, Conductor Range 1000-500, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$175.33
Sale Price
$134.87
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco AU-1000-2NS - Aluminum Mechanical Lug with conductor range 1000-500 kcmil, 2 ports, 2 holes, and 1/2in bolt size. Tin plated with UL, CSA, and NEMA Code S-588-3. Suitable for 35 kV voltage rating, 90°C temperature rating. UL 486A/B Listed, CSA Standard C22.2 No. 65-03. Internal Hex drive size, 600 torque, aluminum material.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
1000-500 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
