Ilsco AU-0 Mechanical Lug - Aluminum, 1/0-14 AWG, Stranded, 35 kV, 1/4"
Normally In Stock
Code: 588698
Ilsco AU-0 - Aluminum Mechanical Lug, Conductor Range 1/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$8.63
Sale Price
$6.64
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

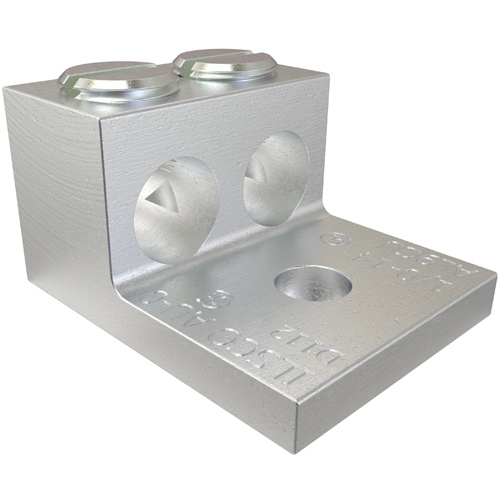

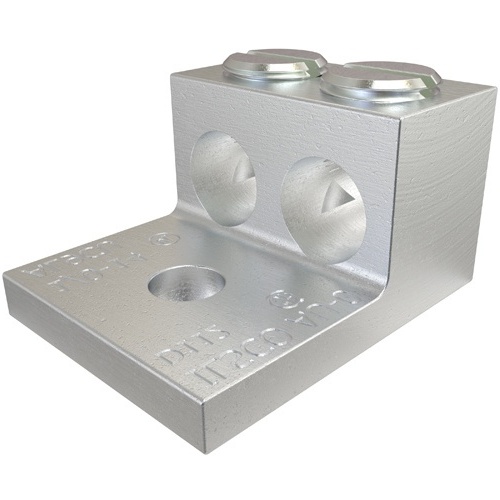

Ilsco AU-0 - Aluminum Mechanical Lug with a conductor range of 1/0-14, 2 ports, 1 hole, and 1/4in bolt size. Tin plated with UL and CSA certifications. Suitable for voltage rating of 35 kV and temperature rating of 90°C. Dual rated for copper and aluminum stranded/solid conductors. Mounting hole diameter of 0.272in. NEMA Code S-588-3.
Specifications
Color
Silver
Terminal Stud Size Opening
1/4"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Terminal for Wire Gauge
1/0-14 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
