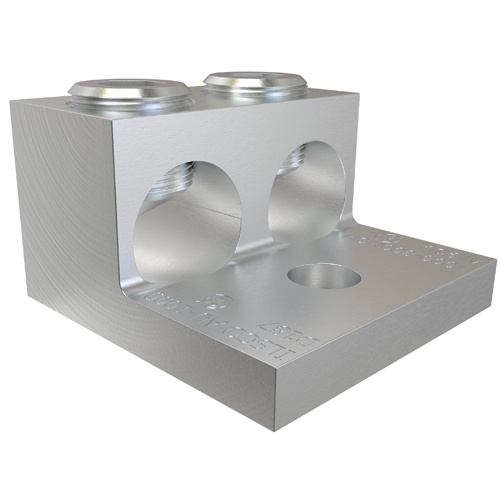

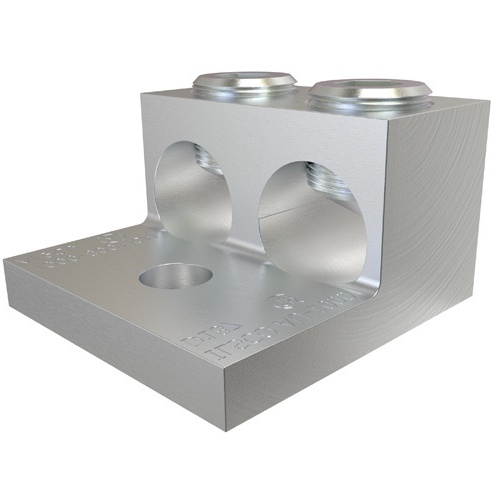

Ilsco AU-1000 Mechanical Lug - Aluminum, 1000-500 MCM, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Code: 588929
Ilsco AU-1000 - Aluminum Mechanical Lug, Conductor Range 1000-500, 2 Ports, 1 Hole, 5/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$134.39
Sale Price
$103.38
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco AU-1000 - Aluminum Mechanical Lug with 2 ports, 1 hole, and 5/8in bolt size. Tin plated for durability, UL and CSA approved. Suitable for 1000-500 kcmil aluminum or copper stranded conductors. Temperature rating of 90°C, voltage rating of 35 kV. Includes 1-1/8in wire binding screw and 600 torque. Dimensions: 3.188in x 1.75in x 0.5in.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
5/8"
Terminal for Wire Gauge
1000-500 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
