Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

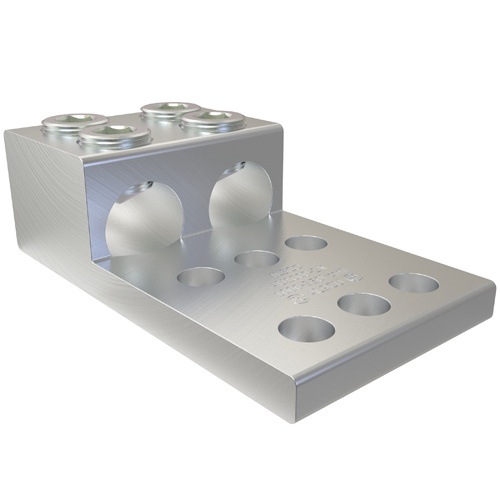

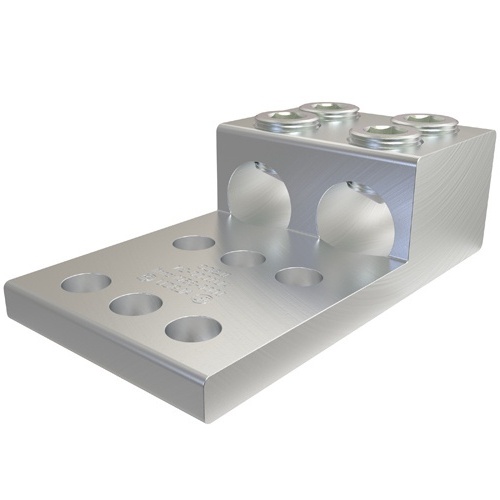

Ilsco AU-1000-2N Mechanical Lug - Aluminum, 1000-500 MCM, Stranded, 35 kV
Normally In Stock
Code: 590808
Ilsco AU-1000-2N - Aluminum Mechanical Lug, Conductor Range 1000-500, 2 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$204.97
Sale Price
$157.67
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco AU-1000-2N - This Aluminum Mechanical Lug has a conductor range of 1000-500 kcmil, 2 ports with 6 holes, 1/2in bolt size, and 1-3/4in hole spacing. It is tin plated, UL and CSA approved, with a 35kV voltage rating. Suitable for copper stranded conductors. Dual rated with a temperature rating of 90°C.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
1000-500 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
