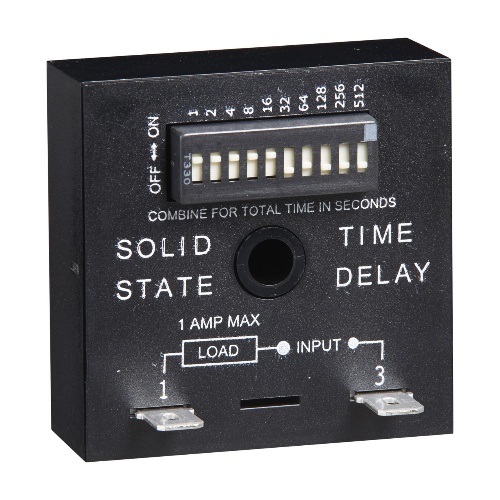

Littelfuse TDUL3000A is a compact, encapsulated time delay relay. It has a steady state output load rating of 1A and can handle inrush currents of up to 10A at 60°C. The device features male quick connect terminals, a wide input tolerance of ±20%, and repeat accuracy of ±0.5% or 20ms. It has a humidity rating of 95% non-condensing, with insulation resistance of ≥100. The setpoint is ±5% with respect to ambient temperature and operating voltage. The solid circuitry ensures durability, with a dielectric breakdown of ≥2000V between terminals and the mounting surface. The time delay is digital, with a tolerance of ±10% and a fast recycle time of ≤150ms. The minimum output holding current is ≤40mA and the output voltage drop is approximately 2.5V at 1A.
