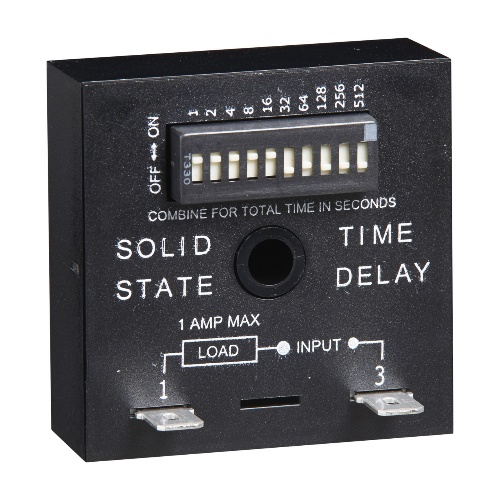

Littelfuse TDUH3001A is an encapsulated digital time delay relay with a 1 A steady state output load rating and 10 A inrush at 60°C. It has 0.25 in. (6.35 mm) male quick connect terminals for easy termination. With an input tolerance of ±20% and repeat accuracy of ±0.5% or 20 ms, it offers reliable performance. The relay has a humidity tolerance of 95% relative non-condensing and a dielectric breakdown of ≥2000V terminals to mounting surface. It has a time delay tolerance of ±10% and a recycle time of ≤150 ms. The minimum output holding current is ≤40 mA.
