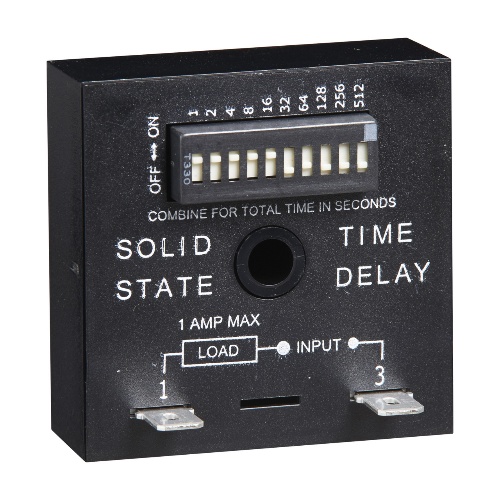

Littelfuse TDUH3000A is an encapsulated time delay relay. It has a 1 A steady state and 10 A inrush output load rating at 60°C. The termination type is 0.25 in. male quick connect terminals. It operates at an input AC line frequency of 50/60 Hz with a tolerance of ±20%. Its humidity resistance is 95% relative non-condensing. It offers repeat accuracy of ±0.5% or 20 ms, whichever is greater, and insulation resistance of ≥100. It has a setpoint vs ambient temperature and operating voltage variation of ≤±5%. The time delay tolerance is ±10% and it has a dielectric breakdown of ≥2000V between terminals and mounting surface. The output voltage drop is approximately 2.5 V at 1 A, and the time delay type is digital. The recycle time is ≤150 ms and it requires a minimum output holding current of ≤40 mA.
