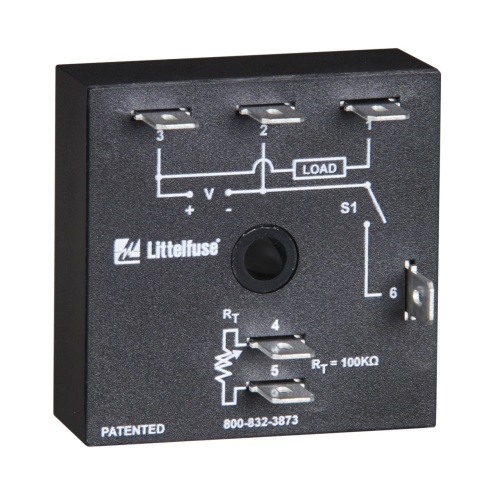

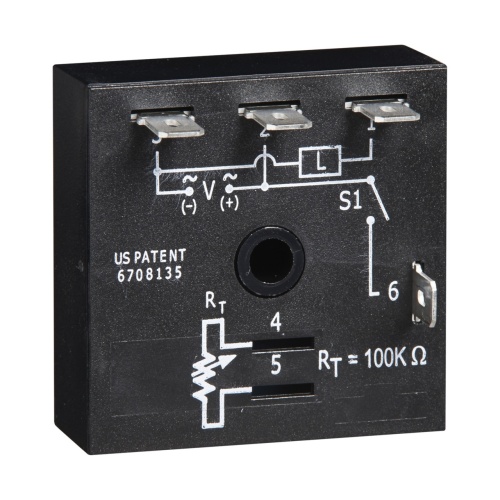

Littelfuse KSDB120P is an encapsulated circuitry solid-state relay with 0.25 in. male quick connect terminals. It has an output load rating of 1A steady state and 10A inrush at 60°C. The relay has a ±20% input tolerance and a repeat accuracy of ±0.5% or 20ms. It can operate at a humidity of up to 95% relative non-condensing. With a power consumption of ≤2W and a time delay tolerance of ±5%, the relay offers reliable performance. It has a dielectric breakdown of ≥2000V terminals to mounting surface and an insulation resistance of ≥100. The output voltage drop is approximately 1V at 1A. The relay has a polarity protection for DC units and a ≤10% input DC ripple.
