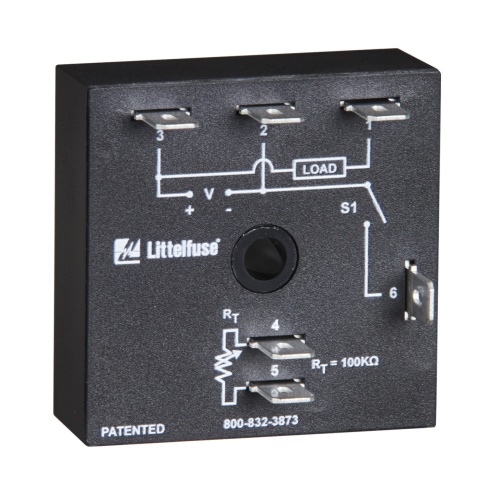

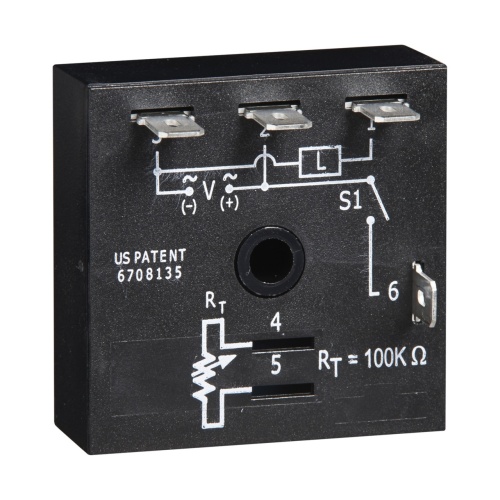

Littelfuse KSDB1110MP is a compact and durable product featuring 0.25 in. male quick connect terminals for easy installation. It has an output load rating of 1 A steady state and 10 A inrush at 60°C. With a ±20% input tolerance and ≤±10% setpoint vs ambient temperature and operating voltage, it offers reliable performance. This encapsulated device has a power consumption of ≤2 W and a reset time of ≤150 ms. It also provides excellent insulation resistance (≥100 Ω) and dielectric breakdown (≥2000V). The output voltage drop is ≅1 V @ 1 A and the open state leakage current is ≅1 A.
