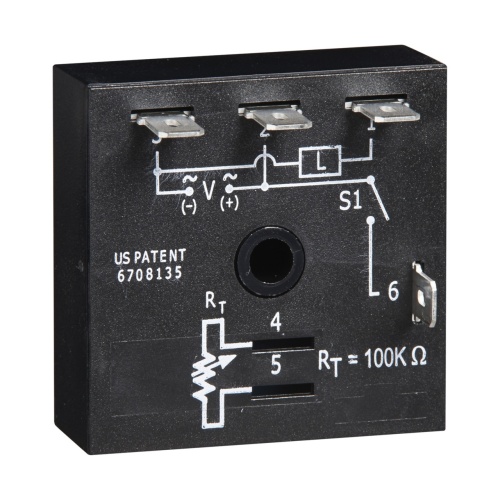

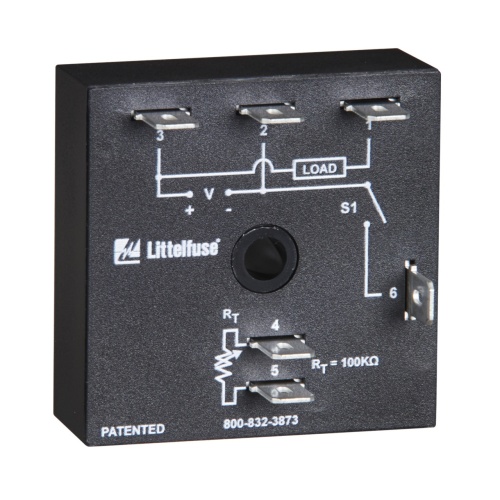

Littelfuse KSDB1115SP is a 1 Amp steady state output load rating with a 10 Amp inrush at 60°C. It features 0.25 in. (6.35 mm) male quick connect terminals for easy termination. The input tolerance is ±20%, and the humidity rating is 95% relative non-condensing. It has a repeat accuracy of ±0.5% or 20 ms, whichever is greater. The insulation resistance is ≥100 and the setpoint vs ambient temperature and operating voltage is ≤±10%. It has encapsulated circuitry and a power consumption of ≤2 W. The time delay tolerance is ±5% with a reset time of ≤150 ms. The dielectric breakdown is ≥2000V terminals to mounting surface. The output voltage drop is ≅1V @ 1A, and the open state leakage current is ≅1A. The initiate time is ≤20 ms, and it is reverse polarity protected for DC units. The input DC ripple is ≤10%, and it operates with positive switching.
